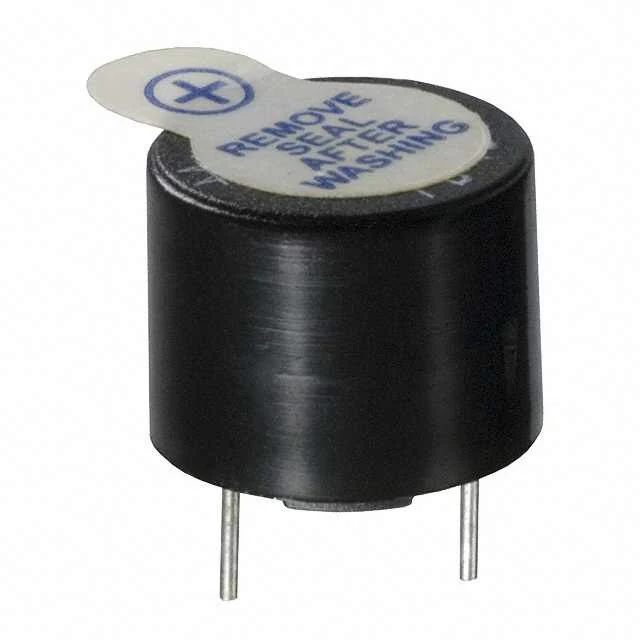

This is a round buzzer that operates around the audible 2kHz range. You can drive it directly from a 5V PIC or Arduino to generate the tones.

Resonant Frequency:    2300 +/- 300 HZ

Rated Voltage: 5V

Voltage range:  4 : 8 V

Rated Current:  30 ma

Min Sound output at 10 cm:  85 dB



How to connect with Arduino up

Connect one side to ground, and the other side to one of the digital pins on your Arduino via a 100 Ohm resistor. Using the tone() function will make the buzzer sound. Example code is below:

Example code

void setup() {

    pinMode(8, OUTPUT);

}

void loop() {

    tone(8, 2093, 4);

    delay(1000);

    noTone(8);

    delay(1000);}
