Extension Cable, Stepper Motor

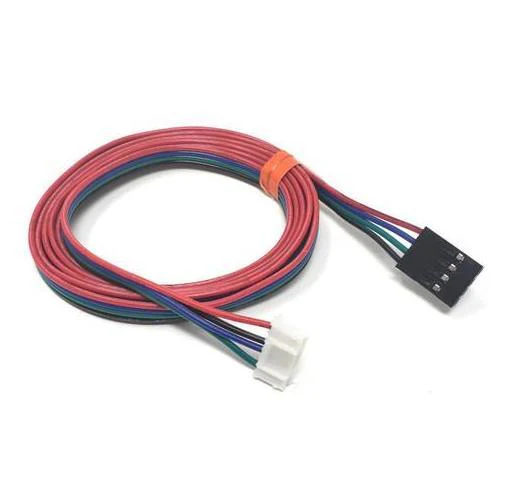

Extension Cable, Stepper Motor to Dupont 4 (No Latch)
- Approximately 1 meter long
- Nema 17 stepper motor 6-pin connector to Dupont 4-pin connector.
The default wiring for this extension cable is listed below. You may need to switch the pins around to match your setup. This is done by carefully lifting the plastic tap that holds the pin in place and gently sliding the pin out.
Controller Side Motor Side
PIN 1 —————–PIN 1
PIN 2 —————– PIN 4
PIN 3 —————– PIN 6
PIN 4 —————– PIN 3
