Flexible Coupler (10mm to 10mm)

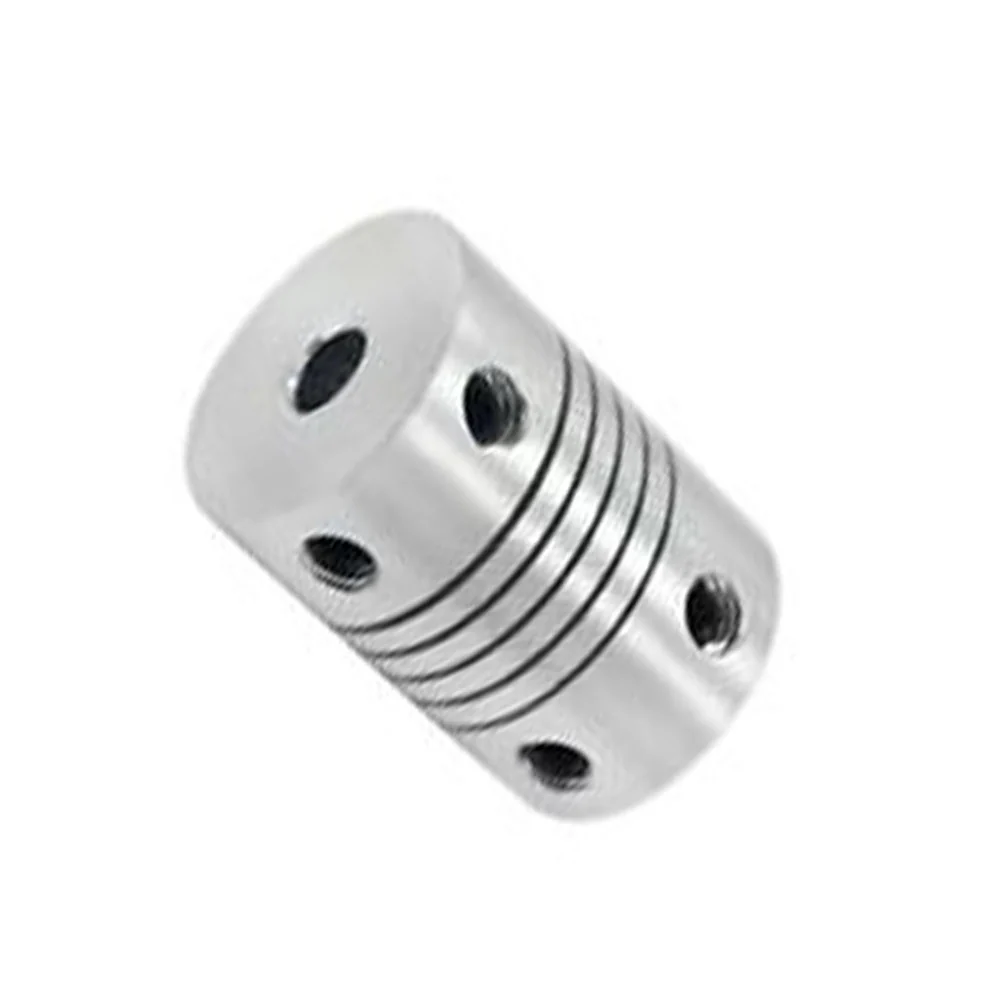

Connect motor shaft to anything else with a set-screw coupler. These couplers are made of machined aluminum and have a spiral cut that makes them slightly flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce bending effects.
The way they are cut, create a spring effect in the X Y & Z linear axis but not in the rotational axis. That means that you will not get increased backlash - so they're suitable for precision CNC work.
This coupler will connect 10mm diameter shaft to 10mm diameter shaft. Comes with two sets of double set-screws (two per side) for secure attachment. You'll need a 2mm allen wrench to tighten/loosen the set-screws.
- 10mm inner diameter / 10mm inner diameter
- Outer diameter 18mm
- Height: 25mm
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Flexible Coupler (10mm to 10mm)
Flexible Coupler (10mm to 10mm)
Connect motor shaft to anything else with a set-screw coupler. These couplers are made of machined aluminum and have a spiral cut that makes them slightly flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce bending effects.
The way they are cut, create a spring effect in the X Y & Z linear axis but not in the rotational axis. That means that you will not get increased backlash - so they're suitable for precision CNC work.
This coupler will connect 10mm diameter shaft to 10mm diameter shaft. Comes with two sets of double set-screws (two per side) for secure attachment. You'll need a 2mm allen wrench to tighten/loosen the set-screws.
- 10mm inner diameter / 10mm inner diameter
- Outer diameter 18mm
- Height: 25mm
