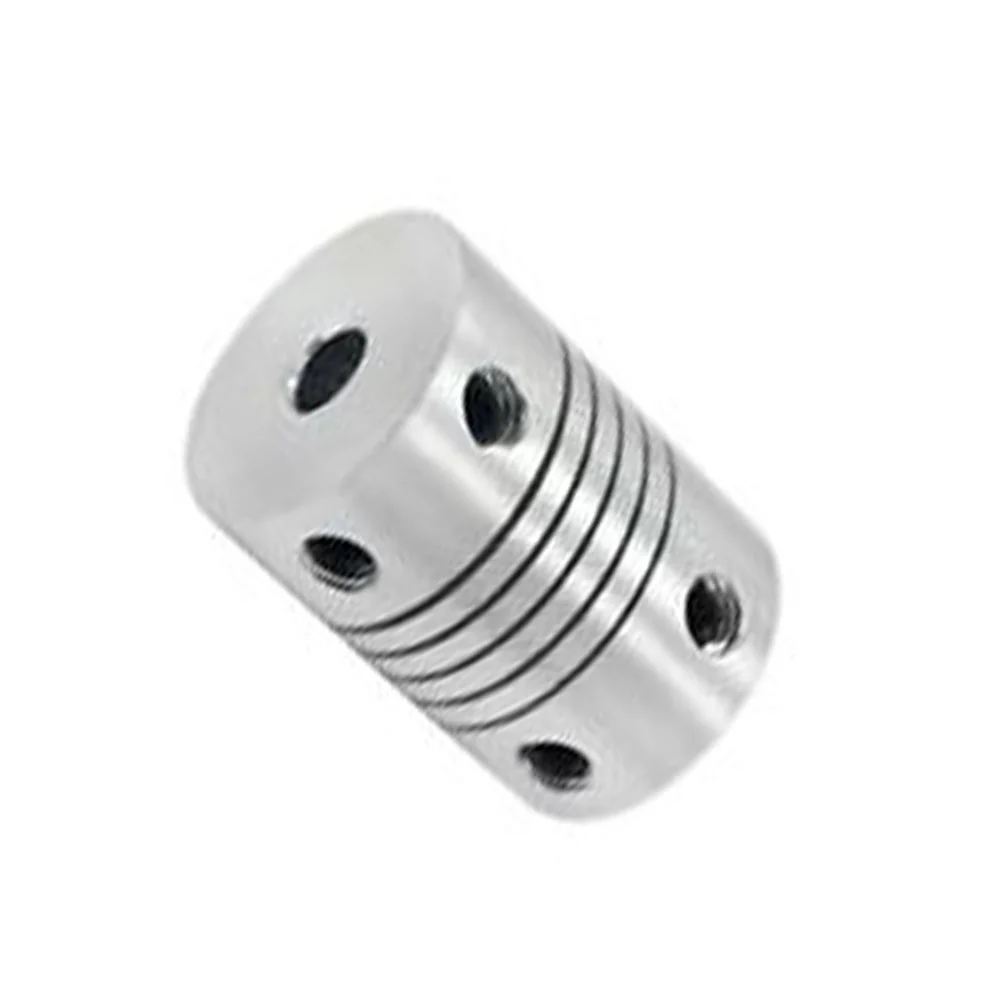

Flexible Coupler (5mm to 10 mm)
Connect motor shaft to anything else with a set-screw coupler. These couplers are made of machined aluminum and have a spiral cut that makes them slightly flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce bending effects.Ā
The way they are cut, create a spring effect in the X Y & Z linear axis but not in the rotational axis. That means that you will not get increased backlash - so they're suitable for precision CNC work.
This coupler will connect a 5mm diameter shaft to an 10Ā mm diameter shaft.Ā Comes with two sets of double set-screws (two per side) for secure attachment. You'll need a 2mm allen wrench to tighten/loosen the set-screws.
Ā
- 5mm inner diameter / 10mm inner diameter
- Outer diameter 19mm
- Weight: 18 grams
- Height : 25
