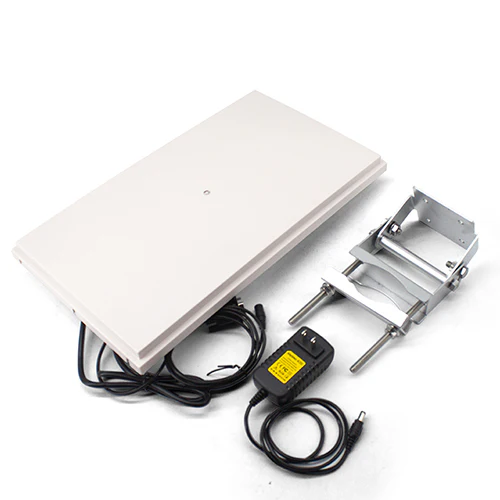

The R16-12DB is an integrated UHF reader with multi-protocol compatibility, fast read rate, multi-tag reading, and waterproof design. It can be widely used in various RFID systems.

include : SDK

model	R16-10DB
Supported protocols	ISO18000-6C（EPC GEN2）
working frequency	ISM 902～928MHz and ISM
Operation mode	FHSS
RF power	0~30dBm，Software Programmable
Reading speed	Single card average reading is 64bits, less than 6ms, Software Programmable
Work mode	reading Active and reading passive, Software Programmable
Communication Ports	N:Wiegand26/34/98, RS232/RS485 ,USB E:Wiegand26/34/98, RS232/RS485,TCP ,USB
Input interface	1 way trigger input
Reading range	20m to 35m
Status indicators	buzzer
Antenna	12dbi circular antenna
Power supply	DC＋9V
Size	440mm×420mm×56mm
Weight	1.55 Kg（Package:3kg）
Operation Temp	-20℃~+70℃
