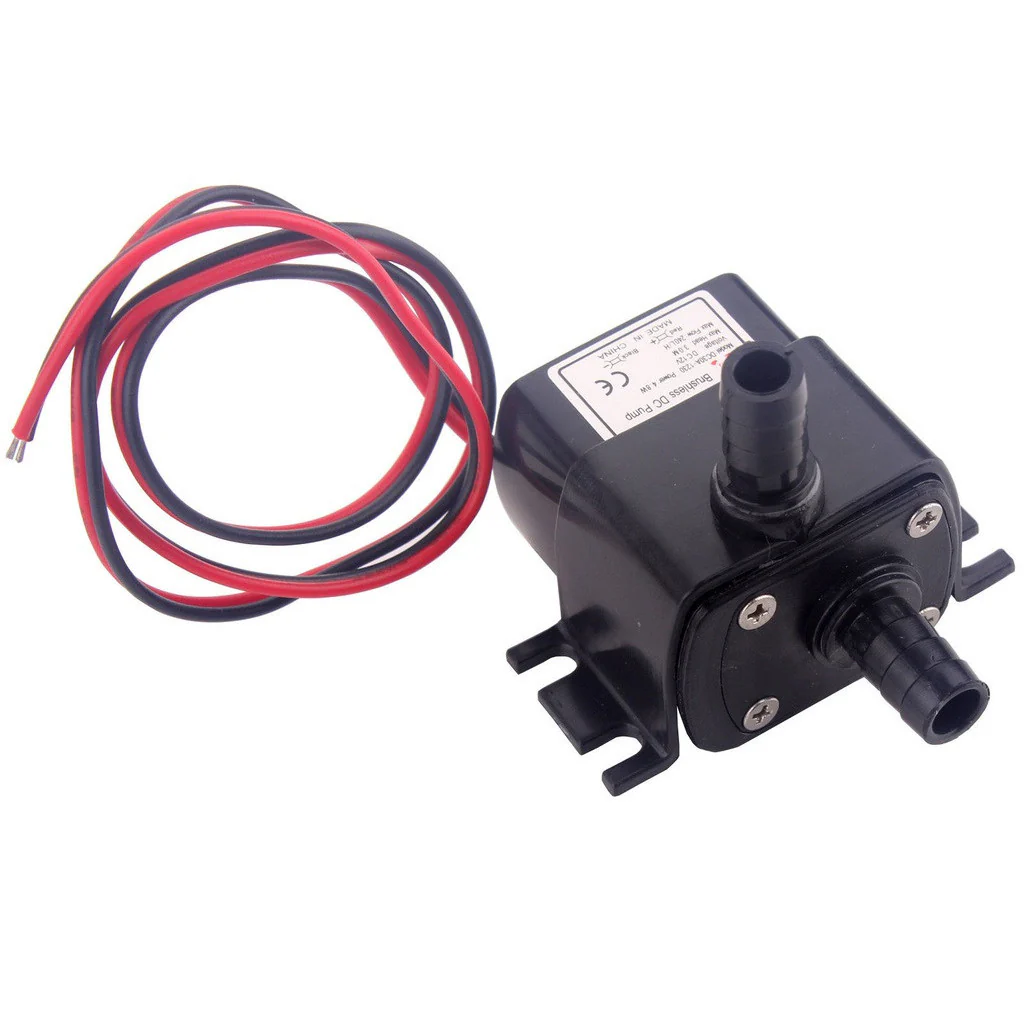

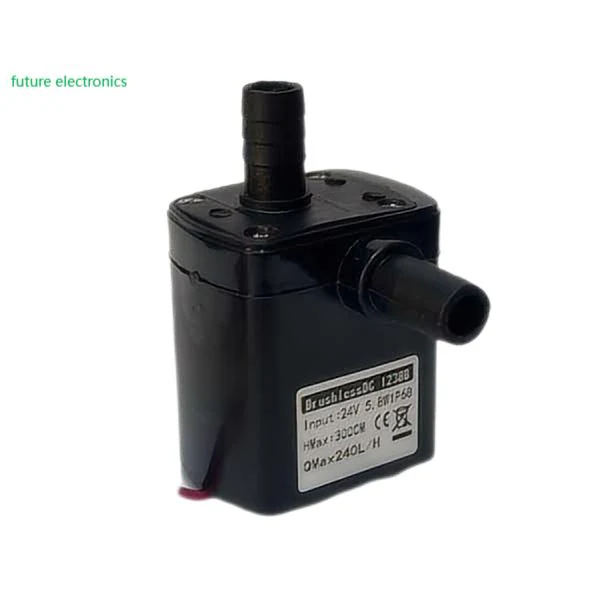

Small brushless Liquid Pump (4 L/Min) HMax 300 CM
This is high performance brushless DC pump withĀ long-life, small size, high efficiency, low noise and low power consumption and adopt high performance stainless steel shaft.
It is submersible and entirely waterproof (IP68) with flow rate of 4L/MIN. The axis is enclosed with static sealing, not dynamic, which can avoid leaking problems.
Can be used in many fields, such as cooling system, Garden fountain, Aquarium, car cooling system, humidifier, air conditioner, and many other cooling and circulation systems.
Very easy to use, just connect the red wire to 12V and black wire to ground .
Specifications
- Water pump housing material: PA66 +30% GF
- Hight Max distanceĀ Ā 300 CMĀ
- Pump material: ABS
- Condition of use: Continuously
- Pump outlet diameter: 8mm
- Maximum Operating Temperature: 60
- Power consumption: 4.2W
- Rated voltage: 12V DC
- Maximum load current: 350mA
- Max flow rate: 4L/MIN(1.06G/MIN)
- Max Static Head: 3m(9.7ft)
- Water proof class: IP68(can be submersible installed)
- Life span: More than 30000hrs
- Power supply: DC power modules, solar panels battery
- Sizes: 51x34x42.7
- Weight: 50g
- Fluids: Water, acid and alkali solution
Note:This pump is not suitable for pumping gasoline/oil.
