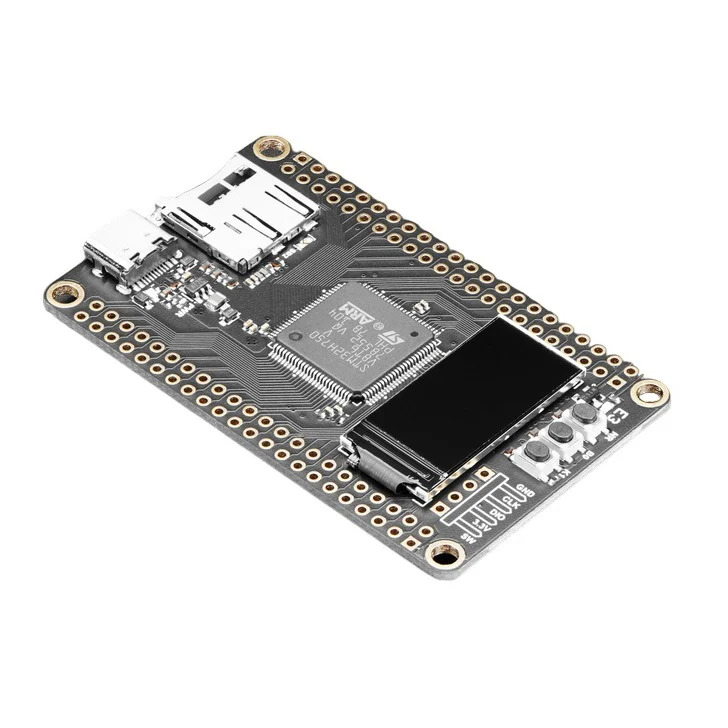

WeAct Studio STM32H750 Development Board

Product image 1
Product image 2
Product image 3

WeAct Studio STM32H750 Development Board

WeAct Studio STM32H750 Development Board

This is development board for the STM32H750 includingĀ  0.96" SPI TFT display and OV7725 M12Ā  camera module. It is a great way to add a powerful STM chip to your next project. Featuring the STM32H750VBT6, this chip has 1024KB of RAM, 8MB of QSPI Flash, and runs at 480 MHz.Ā

Specifications

    • STM32H750VBT6 ARM Cortex M7 Architecture with FPU floating point unit, complete DSP instruction and memory protection unit MPU
    • 480Mhz, 128KB ROM, 1MB RAM
    • Tactile Switches: NR (reset) button, a B0 (DFU bootloader) button, and a K1 (User) button
    • MicroSD slot
    • 8 MB SPI chip (for storage)
    • 8 MB QSPI memory (for program/flash)
    • SWD debug/programming breakout (requires an external STLink compatible programmer)

STM32H750 Development Board Kit Includes

      • STM32H750 Development Board
      • 0.96" SPI TFT display
      • OV7725 Ā camera module



Github STM32H750 Development Board documentation

$52.23
WeAct Studio STM32H750 Development Board—
$52.23

Product Information

Shipping & Returns

Description

This is development board for the STM32H750 includingĀ  0.96" SPI TFT display and OV7725 M12Ā  camera module. It is a great way to add a powerful STM chip to your next project. Featuring the STM32H750VBT6, this chip has 1024KB of RAM, 8MB of QSPI Flash, and runs at 480 MHz.Ā

Specifications

    • STM32H750VBT6 ARM Cortex M7 Architecture with FPU floating point unit, complete DSP instruction and memory protection unit MPU
    • 480Mhz, 128KB ROM, 1MB RAM
    • Tactile Switches: NR (reset) button, a B0 (DFU bootloader) button, and a K1 (User) button
    • MicroSD slot
    • 8 MB SPI chip (for storage)
    • 8 MB QSPI memory (for program/flash)
    • SWD debug/programming breakout (requires an external STLink compatible programmer)

STM32H750 Development Board Kit Includes

      • STM32H750 Development Board
      • 0.96" SPI TFT display
      • OV7725 Ā camera module



Github STM32H750 Development Board documentation
