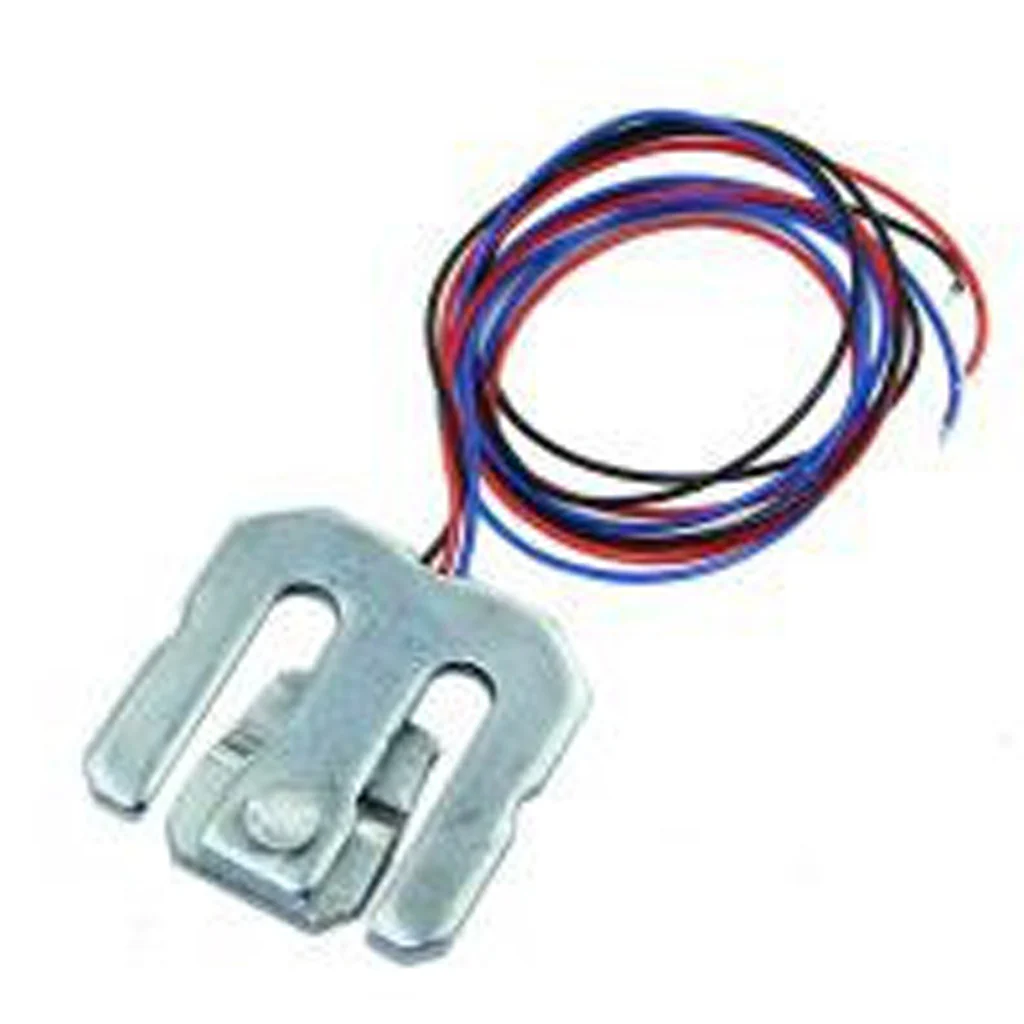

This is half bridge weight sensor (load cell) of measurements range up to 50 kg. It can be used for measuring weight, linear force or even thrust.

For best use of the sensor output please refer to our documents below

Specification:

• Rated load: 50kg
• Rated output: 1.0 ±0.1mV/V
• Nonlinearity: 0.08 %F.S
• Hysteresis: 0.1 %F.S
• Repeatability: 0.05 %F.S
• Temperature Effect On Output: 0.02 %F.S/°C
• Temperature Effect On Zero: 0.02 %F.S/°C
• Zero balance: ±0.1000 mV/V
• Output impedance: 1000±10% Ω
• Operating temperature range: -20~65°C
• Recommended Excitation Voltage: 5 VDC
• Maximum working voltage: 8VDC
• Level of protection: IP65
• Material: aluminium alloy
• Cable: φ0.8×460 mm

For half bridge weight sensor tutorial, click here
